How to Install an Impact Sprinkler System: Layout, Pipe and Valves

Most impact sprinkler systems fail on paper before a single pipe is laid: heads spaced at full throw instead of overlap, a mainline sized for average flow instead of peak zone flow, and valves that starve the far end of the run. The symptoms arrive weeks into the season — dry rings in the crop, a soaked corner, a zone running at half pressure — and the fix means digging up lines that were just buried. This guide walks through a field installation in build order: layout, pipe, valves, risers, and the first fill. The numbers are common working ranges for farm and contractor systems, and they apply whether you are piping a 2-hectare pasture block or a 20-hectare field.

The Numbers That Drive the Whole Install

Settle these five figures before trenching, because every step below refers back to them:

• Operating pressure at the head: 2.5–5 bar (36–72 psi)
• Spacing: 50–65% of the wetting diameter at working pressure
• Flow per full-size impact head: 0.4–1.2 m³/h depending on nozzle and pressure
• Pipe velocity: 1–1.5 m/s (3–5 ft/s)
• Design margin: 10–20% on flow for fittings, elevation and future heads

Step 1: Map the Field and Mark Head Positions

Walk the field before you draw anything. Note the water source, the high and low points, crop rows, and any roads or buildings that will sit inside the watered area. Then measure the actual wetting diameter of one of your heads at your working pressure — do not trust the brochure figure, because throw changes with pressure, nozzle size and wind.

Mark head positions at 50–65% of the wetting diameter. A head with a 30 m wetting diameter, for example, spaces out at roughly 15–19.5 m between heads. Use a rectangular grid for row crops and open blocks, or a triangular pattern (each row offset by half the spacing) where you want the most uniform coverage per hectare. At the edges of the block, along roads, walls and buildings, switch to part-circle heads (90°, 180° or 270°) so water lands on crop rather than on concrete and fences.

Stake every position. At this stage moving a stake costs seconds; after the crop is planted, moving a riser means digging up rows.

Step 2: Size the Mainline and Check the Pump

The pipe is sized by the largest zone, not by the whole field. Count the heads in that zone, multiply by the per-head flow (0.4–1.2 m³/h), and add a 10–20% margin. A 16-head zone, for instance, lands around 6–19 m³/h before margin — which is why most farm mains run 50–75 mm rather than garden hose.

Keep water velocity in the range of 1–1.5 m/s. Above that, friction losses climb quickly and the farthest head drops out of the pressure band. A quick rule: if you are unsure between two sizes, take the larger one — pipe is cheap, and relaying it after planting is not.

Then check the pump against the zone. The pump must deliver the zone flow at 2.5–5 bar at the farthest head, so subtract elevation losses (about 1 bar per 10 m of rise) and friction losses from the pump discharge pressure. If the pump falls short, the cheaper fix is usually more heads at lower flow or smaller zones — not a bigger pump. Where the supply runs above 5 bar, plan a pressure regulator on the manifold.

Step 3: Trench and Lay the Mainline and Laterals

Dig trenches 40–60 cm deep for general farm lines, and 60–80 cm in regions where the ground freezes — the line should sit below the frost line, so confirm your local frost depth first. Give each trench a slight grade of 0.5–1% toward a drain point or low valve, so the system can be drained before winter.

Lay the mainline first, then the laterals. Bed the pipe on smooth soil — remove sharp stones and roots that would press into the wall — and use sweep elbows rather than tight 90° turns where the line changes direction. Keep joints clean and dry before solvent-welding PVC, and in cold weather warm the pipe and fittings before gluing so the joint cures properly. Leave the ends unconnected until Step 6: the lines still have to be flushed.

Step 4: Install the Valves and Manifold

Put one valve per zone, grouped at a manifold near the water source so you can shut a single zone down without killing the field. The upstream order matters:

1. Main shut-off valve
2. Strainer or screen filter (essential for pond, ditch or well water — it protects valve seats and nozzles from sand and weed seed)
3. Pressure regulator, if the supply exceeds 5 bar
4. Zone valves — manual ball valves for a simple system, or solenoid valves wired to a controller for automated cycling
5. Manifold outlets feeding the laterals

Fit a check valve near the pump so water does not flow backward through the pump when it cycles, and install a vacuum breaker or backflow prevention where local code requires it — check with your supplier or authority before you bury the manifold. Set the manifold in a valve box flush with grade, and label each valve by zone. A buried, unlabeled manifold turns a five-minute repair into a half-day dig.

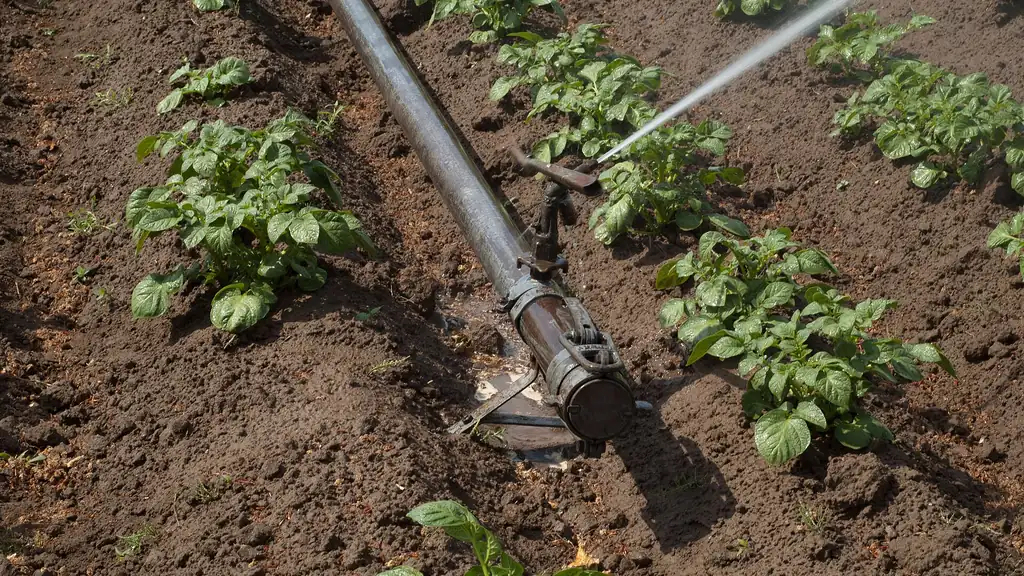

Step 5: Set Risers and Mount the Sprinklers

Riser height follows the crop. Pasture and ground-cover blocks commonly run risers 60–90 cm above grade; tall crops and over-tree frost-protection layouts extend risers to 1.5–2 m. Use 1/2” or 3/4” threaded galvanized or PVC risers to match the head inlet.

Wrap the threads with 2–3 turns of PTFE tape, hand-tighten the head onto the riser, then finish with a wrench for roughly a quarter turn. Over-tightening brass heads distorts the body and jams the arm, so stop at snug. Set each head plumb — an angled head throws an egg-shaped pattern and robs the overlap at the far edge.

If the head has a part-circle collar, set the arc now: rotate the trip collar so the trip arm strikes the stream where you want the reversal point. Most heads adjust from about 20° to 340°; full-circle operation is set by moving the collar out of the trip path.

Step 6: Flush, Test and Commission

This is the step that separates a clean install from a season of blocked nozzles. Before fitting the heads, open the line ends and flush every main and lateral until the water runs clear — cuttings, glue and sand from the trench have to leave the system now, not later.

Then fit the heads, close the system and fill it slowly. Pressurize to working pressure and walk the entire trench, watching every joint, valve and riser base for drips. Fix leaks before backfilling — chasing a pinhole through 60 cm of soil afterwards costs hours. Once the line holds pressure, run each zone for 20–30 minutes and check throw and overlap against the Step 1 marks. Adjust riser height or part-circle setting on the spot; move a head only if a dry ring actually appears.

Finish with the controller: schedule watering in the early morning (commonly 4:00–8:00 am) to cut evaporation and wind drift, and backfill the trenches once the test run passes, tamping the soil in layers to restore grade. Before each new season, drain the lines where frost is a risk, inspect the strainer, and replace worn springs and nozzles — typically every 2–3 seasons in abrasive water.
